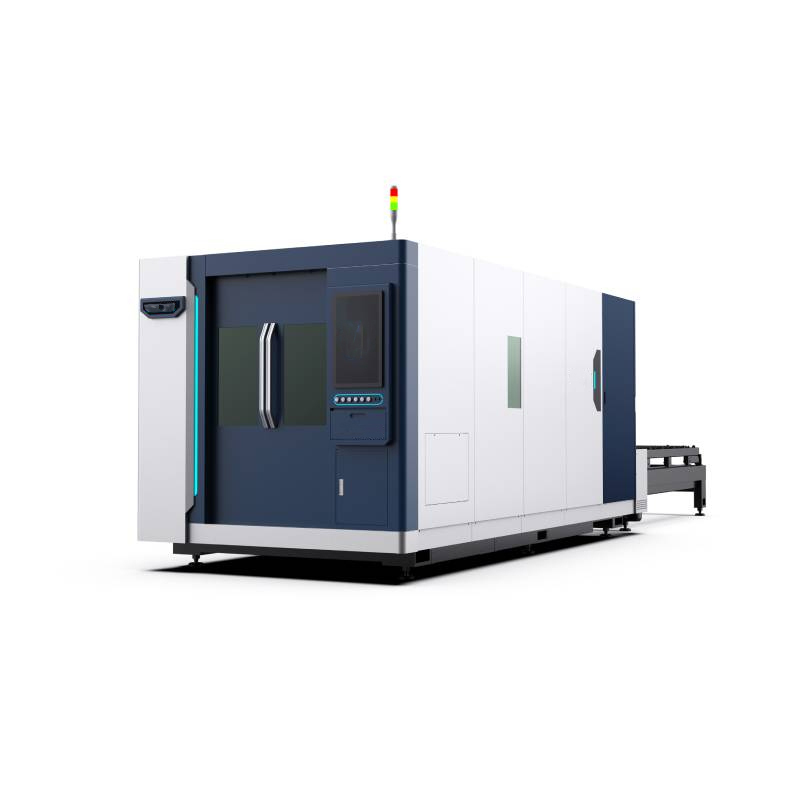

laser cutter for metal

ZGLC-C2
6000W/8000W/12000W/20000W/30000W
Water-cooled
Fiber laser
13500KG
Quantity:
Contact Now


Work area (Length X Width)3000*1500mm
Product Namezglclaser cutter for metal
X-axis travel1530mm
Y-axis travel3050mm
Z-axis travel330mm
Tube length500~500mm
Tube diameter20~220mm
X/Y-axis positioning accuracyX/Y-axis
repeated positioning accuracy
±0.05mm
Maximum speed±0.02mm
Maximum acceleration130m/min
Dimensions (length x width x height)9300*3460*2180mm
Maximum load1100KG
                           zglclaser cutter for metal
Product Features


1.stable and reliable light path system and control system.

2. Imported original fiber laser generator with great and stable performance to ensure the lifespan over 100,000 hours.

3.high cutting quality and efficiency with smooth cutting edge.The cutting speed up to 130m/min.Dual and exchange work table to save uploading time.

4. Full protection cover to ensure the operator safety and reduce the factory air pollution.

5.new design for the whole machine with left and right funnels for waste collection space-saving.

6. The dual gear and driver system to ensure high work precision.Imported guide rail and ball screw to guarantee machine stable work process.


Product Details
zglclaser cutter for metal

Laser Source

1.High-power and high-quality laser output
2.Uniformly distributed beam energy
3.Excellent performance and strong processing ability
4.Compact structure and maintenance-free
5.Wide range of applications


Laser Cutting Head

1.Efficient Cooling: The collimating and focusing lenses have cooling structures, and the nozzle features cooling airflow, protecting the nozzle and ceramic body, and extending operation time.
2.Fast Focusing: Collimated focusing allows for faster movement and a larger adjustment range than traditional focusing.
3.Multiple Protective Lenses: Four protective lenses reduce contamination when replacing fiber and lower protective lenses, extending the life of the collimating and focusing lenses.
4.Optimized Structure: Integrated body design ensures sealing. Improved QBH, QD, and G5 fiber interfaces enhance compatibility with the laser source and prevent jamming caused by issues like rust and water leakage.
zglclaser cutter for metal


zglclaser cutter for metal

High-strength Machine Tool Bed

1.The high-strength machine bed is welded from high-quality steel plates and tubes.
2.After welding, it undergoes stress relief annealing, secondary aging treatment, and precision machining with a large-scale milling machine to ensure structural stability and vibration resistance, capable of withstanding high acceleration.
3.The bed has no internal connections, effectively blocking heat transfer and preventing cutting heat from affecting machining accuracy. This ensures long-term deformation resistance and extends the machine’s service life.


Aircraft-grade High-strength Aluminum Beam


1.The beam is made from aerospace-grade high-strength aluminum alloy, processed with extrusion, quenching, and aging, offering excellent rigidity, surface quality, corrosion resistance, and lightweight durability.
2.The internally optimized structure ensures excellent dynamic performance during high-speed laser processing, maintaining precision and enabling cutting of various shapes.
zglclaser cutter for metal


                        zglclaser cutter for metal Quality Control:

 zglclaser cutter for metal


                              Zglclaser cutter for metal Sample Pictures:
 zglclaser cutter for metal


                                               Zglclaser cutter for metal Scope of application:
         zglclaser cutter for metal
