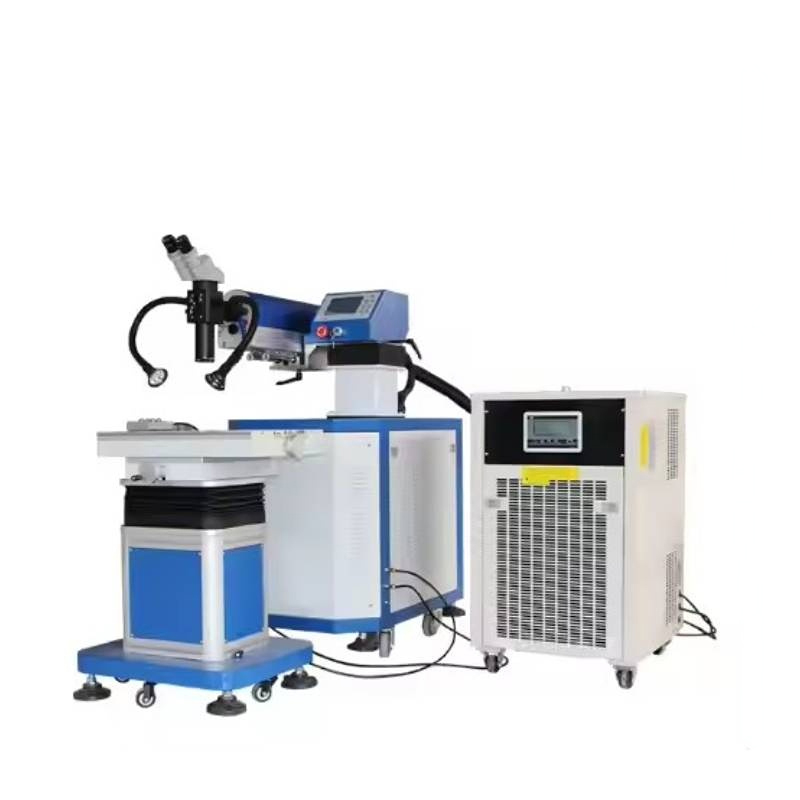

Mold Repair Laser Welding Machine Price

ZGLC-W10

200W/300w/400W(optional)

Quantity:

Contact Now

Model	CY-WY200
Product Name	zglc laser welding machine
Max. laser power	200W/300w/400W(optional)
Laser wave length	1064nm
Range of adjustable power	1-100%
Laser spot size adjusting range	0.1-3mm
Repeat frequency	5-10KHz(adjustable)
Pulse Width	0.1-15ms
Repeat precision	±0.01mm
Power stability	±2%
Length of fiber-optical	5m
Whole power consumption	≤12KW
Module life	>100000hrs
Power supply	220V±10%/50HZ 380V±10%/50HZ
laser repairing machine price	Good Price can contact

Product Features

Specifically designed for mold industry, introduce German technology, adopt unique structure design, suitable for all kind of large, medium and small mould repair.
adopt UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
using the World most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back,
Especially suitable for all kinds of large, medium and small mould repair; Parameter adjustment adopts intelligent remote control, simple and quick operation;
Three-dimensional moving workbench can be electric hoist;
Light spot of size electric regulation

Product Details

Motic HD microscope

Zglc laser welding machine 10 x microscope amplification,cross cursor indicator,and adopting advanced automatic shading system. synchronization with the laser output of shielding gas,to make sure the solder joints and beautiful and smooth.

CCD Camera

our laser repairing machine price is competitive with adopts China famous brand CCD camera, LCD screen and red pointer. CCD camera can photo-shot the welding details and transmit the signal to LCD screen.The welding effect is more clear and intuitive.

X / Y / Z three-axis mobile work platform

Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.

ZGLC laser welding machine Laser Head

The laser head can rotate 360 degress,which is much more convenient for positioning and welding for the special-shaped objects.

LCD Colorful Screen

The operation interface of the welding machine control system is simple and practical.Pulse width, frequency and speed can be adjusted on the screen and no need PC. Can save 50 sets of frequently used welding parameters. easy to use.

Double LED Light

Standard comes with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue microscope auxiliary light. The auxiliary lighting uses energy-saving high-light bulbs with clear imaging and good heat dissipation effect, and will not burn the skin for a long time.
