Product characteristics and application

EM-Smart series laser marking machines are small and compact, portable and easy to carry. Can use this equipment under household electricity, and can directly butt joint the self computer host and suitable to multiply scene. The applicable materials of this machine include: common metal and alloy (all metals like iron, copper, aluminum, magnesium, zinc), rare metals and alloy (gold, silver and titanium) metal oxidize (various metal oxidize all are OK), special surface handle (phosphorization, aluminum anodized and electric plating surface), ABS material (electric apparatus shell, commodities), oil ink (light transmitting keys, printing products), epoxy resin (sealing and insulation layer of electric elements).

Working principle

The laser machine output the laser beam with wave length 1064 nm and interior expanding beam, then ray on the reflect mirror of 2 pieces galvo scanner in the light circuit, the galvo scanner generate quick swing under computer control and make the laser beam scanning at both plane X and Y axis direction. It formed one by one micro thin and high energy density light spots through the lens laser beam focus on the surface of machined objects, each high energy laser light spot burning etch on the object surface at a moment and formed the grave.Continuous this process through computer control then the layout mark contents in advance like characters and figure permanently etch on the object surface.

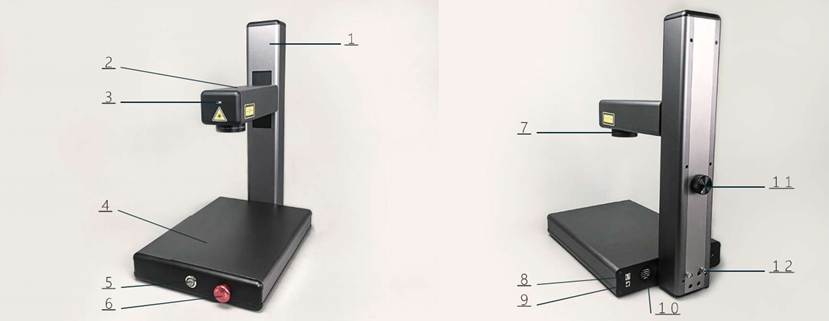

Product structure

About Machine on Youtube:

//youtu.be/ZUDKxYVxcXU?si=gjc1HFyRfG4JeUcJ

If need know more about this machine, just leave a message and we will get back to you. Thanks!

Written by Jenny Joo
