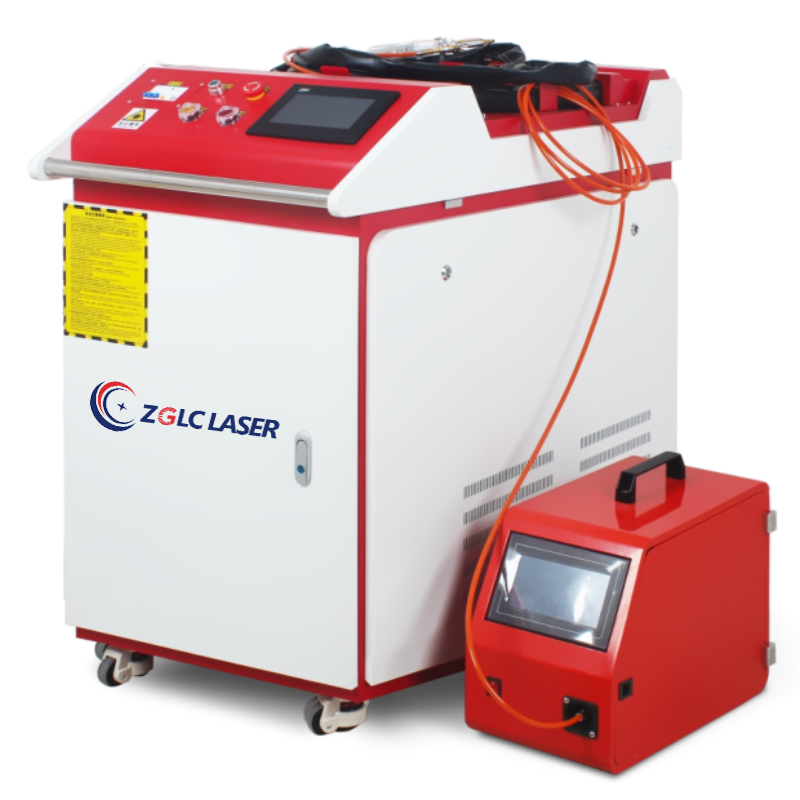

Manufacturing China Laser Welder
ZGLC-W2
Quantity:
Power | 1000w, 1500w, 2000w, 3000w |
Model | TL-HLW1000, TL-HLW1500, TL-HLW2000, TL-HLW3000 |
Wavelength | 1080±5 nm |
Power Adjustment Range | 10-100% |
Aiming and Positioning | Red Light |
Fiber cable Length | 10m/15m/20m |
Welding Speed | 0-120mm/s |
Applicable Thickness | ＜3.5mm (depending on the material) |
Wire Feeder | Standard wire feeding speed 38~600mm/min |
Wire Feed Diameter | 0.8/1.0/1.2/1.6/2.0mm |

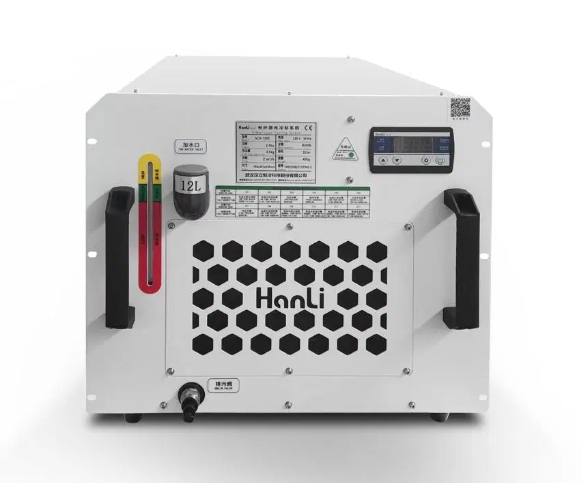

Cooling Way | water cooling |
Working Environment | 10~40°C, humidity 10~85%, no condensation |
Operating Voltage | single phase 220±10%VAC, 50/60Hz (for 1000w, 1500w, 2000w) three phases 380±10%VAC, 50/60Hz (for 3000w） |

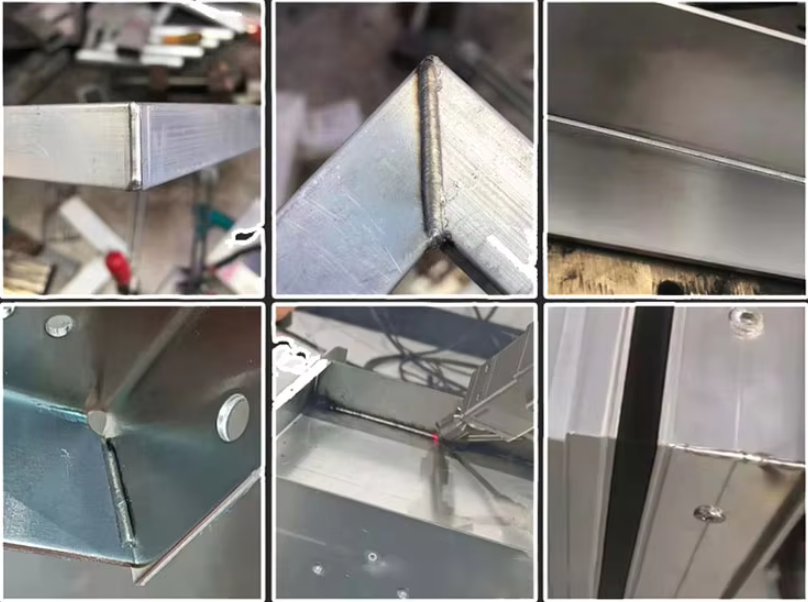

laser weld strength
Product Features
- The operation is simple, unexperienced people can also use it quickly.
- The welding speed is super fast. A handheld laser welding machine can replace the output of 3 to 5 welders.
- Welding is without consumables, saving costs in production.
- After the welding is completed, the welding seam is smooth and white, without polishing.
- Thechina laser welder has concentrated energy, small heat reflection range, and the product is not easy to deform.
- The laser welding machine has concentrated energy, and the welding intensity is very high.

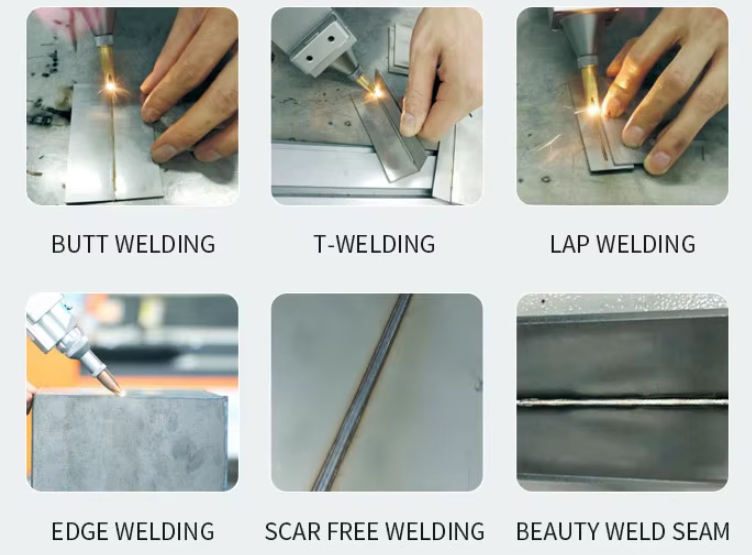

- The energy and power of the laser welding machine are digitally controlled, which can meet various welding requirements, such as complete penetration, penetration, spot welding, and so on.
- Three Used , Cutting , Welding And Cleaning is no problem , save company cost.
Product Details
china laser welder

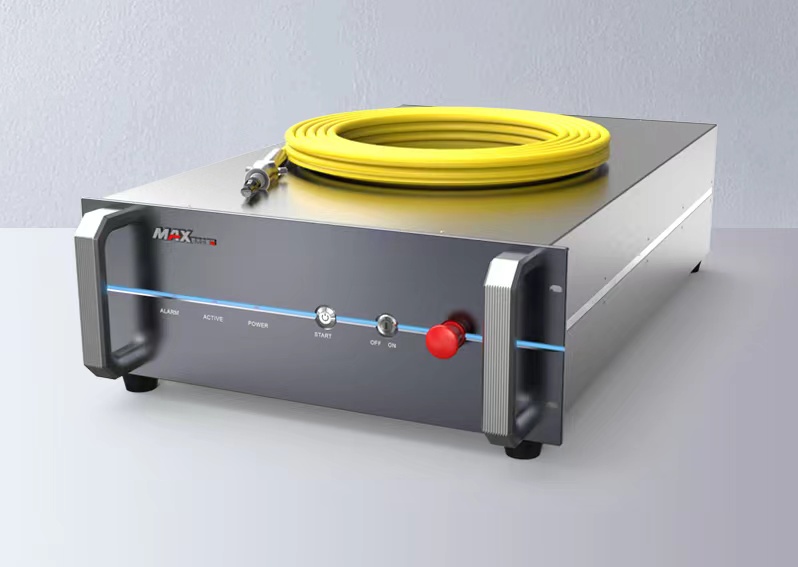

Laser source BWT/RAUCYS/MAX
◼ Well-known brand, super long warranty for two years
◼ 20um Fiber core diameter, higher photoelectric conversion efficiency
◼ Good beam quality and stable performance
◼ 20um Fiber core diameter, higher photoelectric conversion efficiency
◼ Good beam quality and stable performance

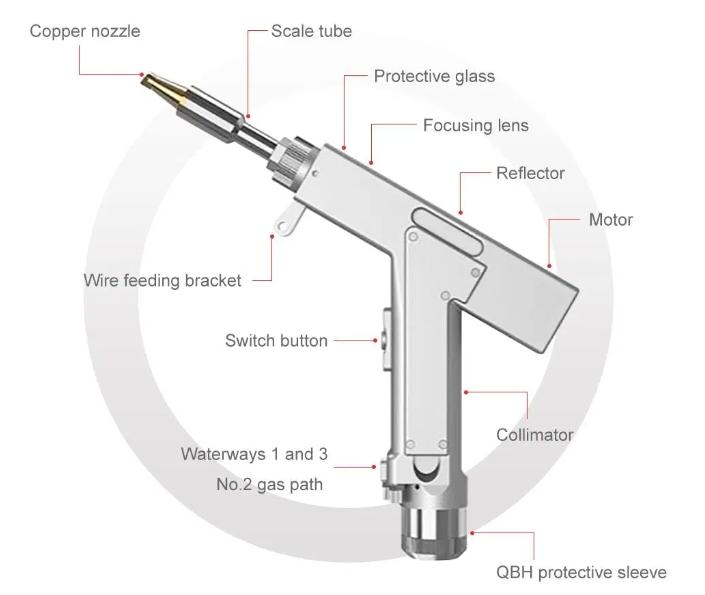

Laser Welding Head
◼ Portable handheld welding head is the biggest character of the machine.
◼ It weighs only 0.7kg, even female workers can easily use it.
◼ Welding at any position and angle is possible
◼ Infrared positioning, more accurate welding position
◼ Welding at any position and angle is possible
◼ Infrared positioning, more accurate welding position

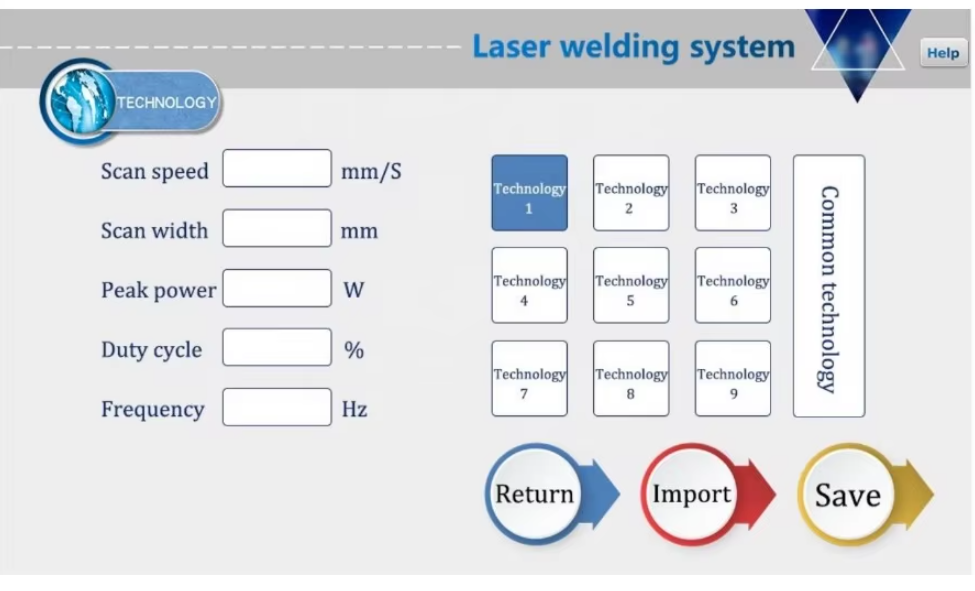

Control System

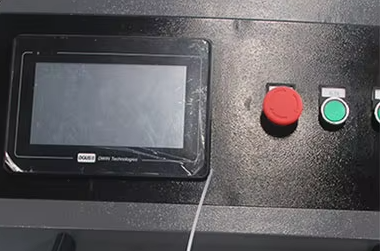

◼ LCD screen, good interactive control system
◼ Preset a variety of process modes to meet different process needs
◼ Preset multiple security alarms, more secure and reliable
◼ Preset a variety of process modes to meet different process needs
◼ Preset multiple security alarms, more secure and reliable
