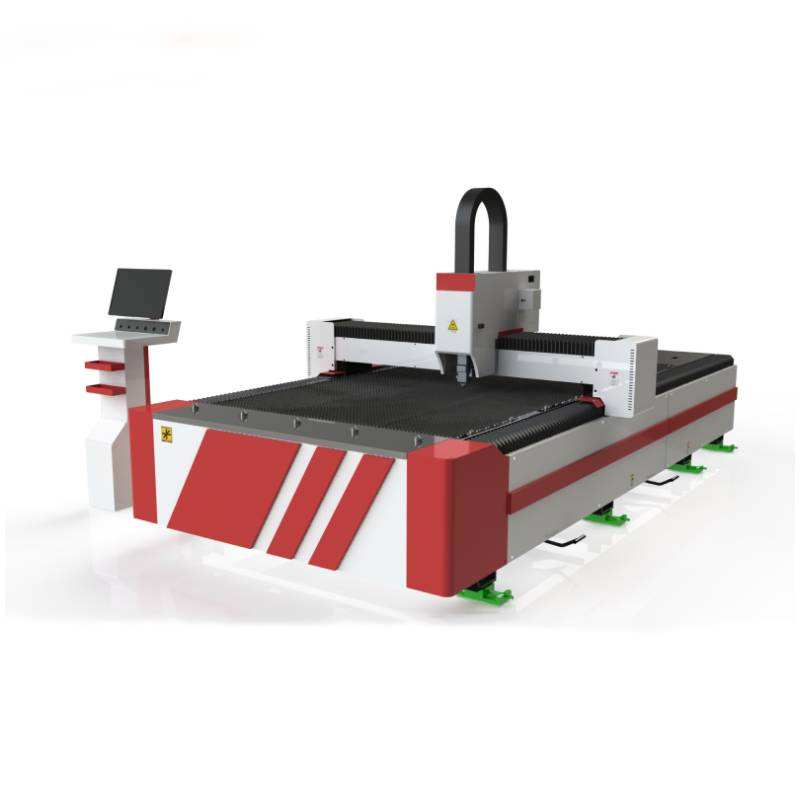

ZGLC-C5
3000W/6000W
Water-cooled
Fiber Laser
14000KG
Quantity:
Contact Now

Model Type
ZGLC-2513
ZGLC-3015
ZGLC-4015
ZGLC-6020
Cutting Width
1300×2500mm
1500×3000mm
 1500×4000mm
2000×6000mm
Laser Media
Fiber Laser
Power
1000w/1500/2000w/3000w
Wave Length
1080nm
Min. Route Width
0.01mm
Reposition Accuracy
±0.05mm
Aiming Positioning
Red Dot
Voltage Requirement
220V or 380V / 50Hz~60Hz
Linear Rail
Taiwan Lapping/Japan THK(optional)
Reducer
Japan Shimpo
Laser Source
RAYCUS/MAX/IPG(optional)
Cutting Head
WSX/Raytools
Servo System
France Schneider AC Servo System
Control System
Cypcut/Weihong NC Studio
                                  laser cutting machine bed
laser cutting machine bed

Product Features

  • The mechanical part of the laser head has no contact with the workpiece, and will not cause scratches on the surface of the workpiece during work;
  • The laser cutting speed is fast, the incision is smooth and flat, and generally does not require subsequent processing;
  • The cutting heat-affected zone is small, the plate deformation is small, and the cutting slit is narrow ( 0.1mm~0.3mm); the incision has no mechanical stress and no shearing burrs;
  • The processing accuracy is high, the repeatability is good, and the material surface is not damaged;
  • CNC programming can process any plan view, and can cut the entire board with a large format, without Opening the mold is economical and time-saving.

Product Details
laser cutting machine bed
laser cutting machine bed

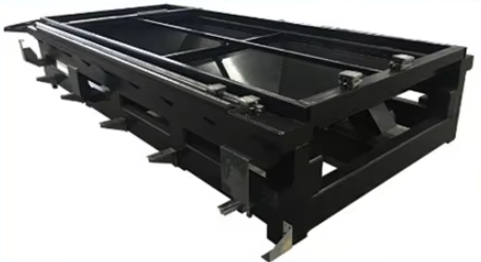

Machine Structure


The machine structure adopts industrial heavysteel structure, under heat treatment, sufferlower temperature tempering and annealingwon't deform after long time use. the machinebase is very stable when the processing


Japan THK Linear Rail and Block


The machine adopts the best linear and blockrail from Japan. We have the feedback from ourclient that its block even can use over 10 yearsand can't break.The usage lifespan and the product qualitydefinitely can be ensured,
laser cutting machine bed


laser cutting machine bed

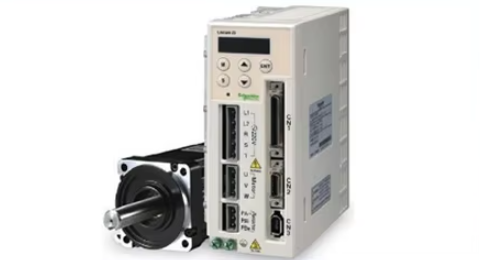

France Schneider Servo System


The fiber laser machine adopts the importedservo system from France including servomotor and servo driver, The Y axis two servomotor power are 2KW, The X axis servo poweris 2KW power, The Z axis servo motor poweris 0.4KW power

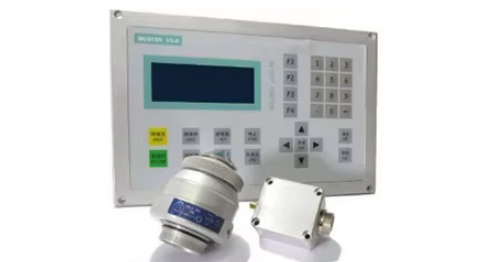

CYPCUT Control System


The best control system in fiber laser machineindustry,
It is suitably applied to high power fiber lasermachine and can support the rotary deviceexchange table and automatic focuscutting head.
laser cutting machine bed


                               Quality Control:
                              laser cutting machine bed

                                                                                         laser cutting machine bed

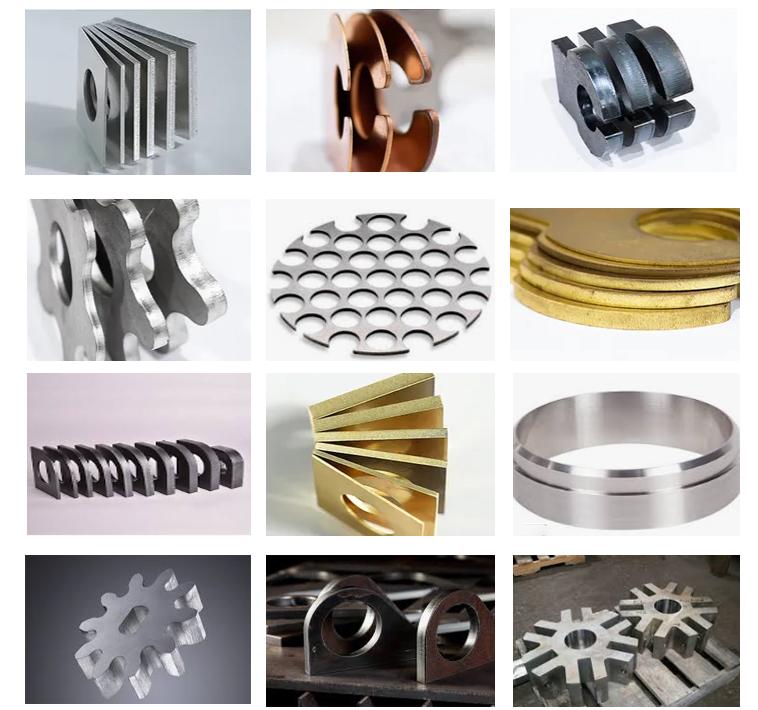

                               Sample Pictures:
                                                                                 laser cutting machine bed


                                                Scope of application:
                                                                                     laser cutting machine bed
