Is a 20W Fiber Laser Marking Machine Enough for Metal Marking?

Is a 20W fiber laser marking machine enough for stainless steel marking? How does it actually get the job done? Short answer: yes, for most marking jobs. If you need logos, serial numbers, QR codes, Data Matrix codes, or nameplates on metal, a 20W pulsed fiber laser is a solid choice. It won't cut through thick steel or carve deep grooves, but it will leave permanent, high-contrast marks that survive harsh environments. Let's break down what 20W can and can't do.

1. Is 20 Watts Really Enough?

Most of the time, yes. If your goal is identification rather than deep metal removal, a 20W pulsed fiber laser marking machine handles stainless steel serial numbers, QR codes, Data Matrix codes, logos, product IDs, and nameplates without breaking a sweat. The mark is created by annealing or slight surface ablation—not deep engraving. This keeps the part's integrity intact while delivering a mark that's readable and permanent.

Where 20W falls short: deep engraving, cutting thin metal, or marking very hard materials like tungsten carbide at production speed. If that's your job, step up to 30W or 50W.

2. 20W vs. 30W vs. 50W: How They Compare on Different Metals

The jump from 20W to 30W is noticeable in speed and contrast. The jump to 50W is about production throughput and depth. For a small shop doing batch work, 20W is fine. For 24/7 production, go higher.

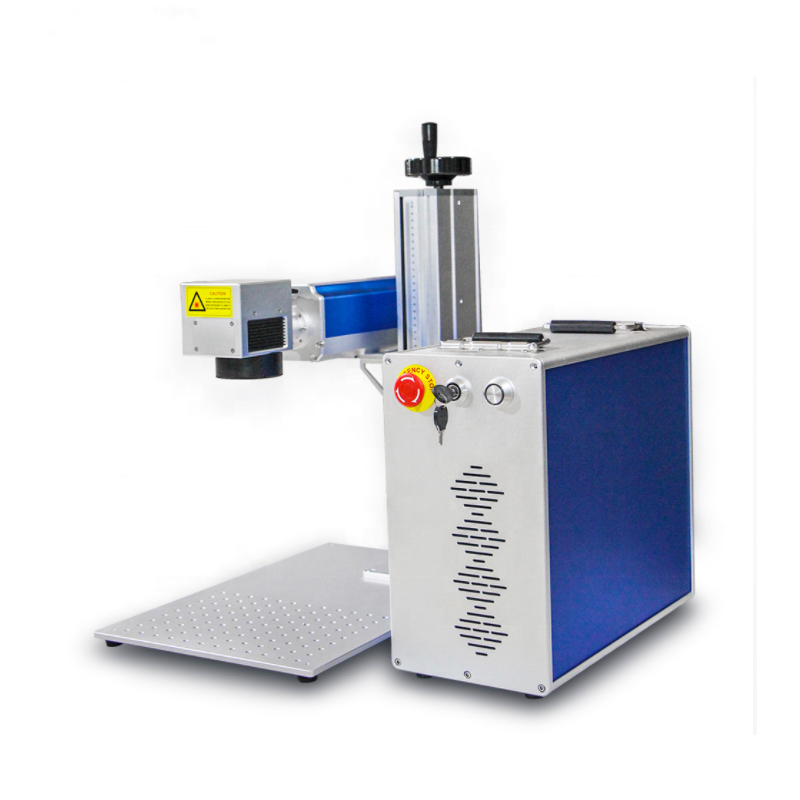

3. ZGLC Laser 20W Fiber Laser: Real Reference Parameters

Here's what our 20W laser marking machine for metal actually delivers:

• Laser Type: Pulsed Fiber Laser (Yb-doped)

• Output Power: 20W

• Wavelength: 1064nm

• Reference Marking Speed: Up to 7,000 mm/s

• Standard Marking Field: 110mm × 110mm

• Optional Fields: 70×70mm, 150×150mm, 200×200mm

• Cooling: Air-cooled

• Control: Touchscreen + PC software

• Software: EZCAD compatible

• Power Supply: 110V/220V, 50/60Hz

These specs mean you can mark small to medium parts quickly and consistently. The 110mm field covers most nameplates, tools, and components.

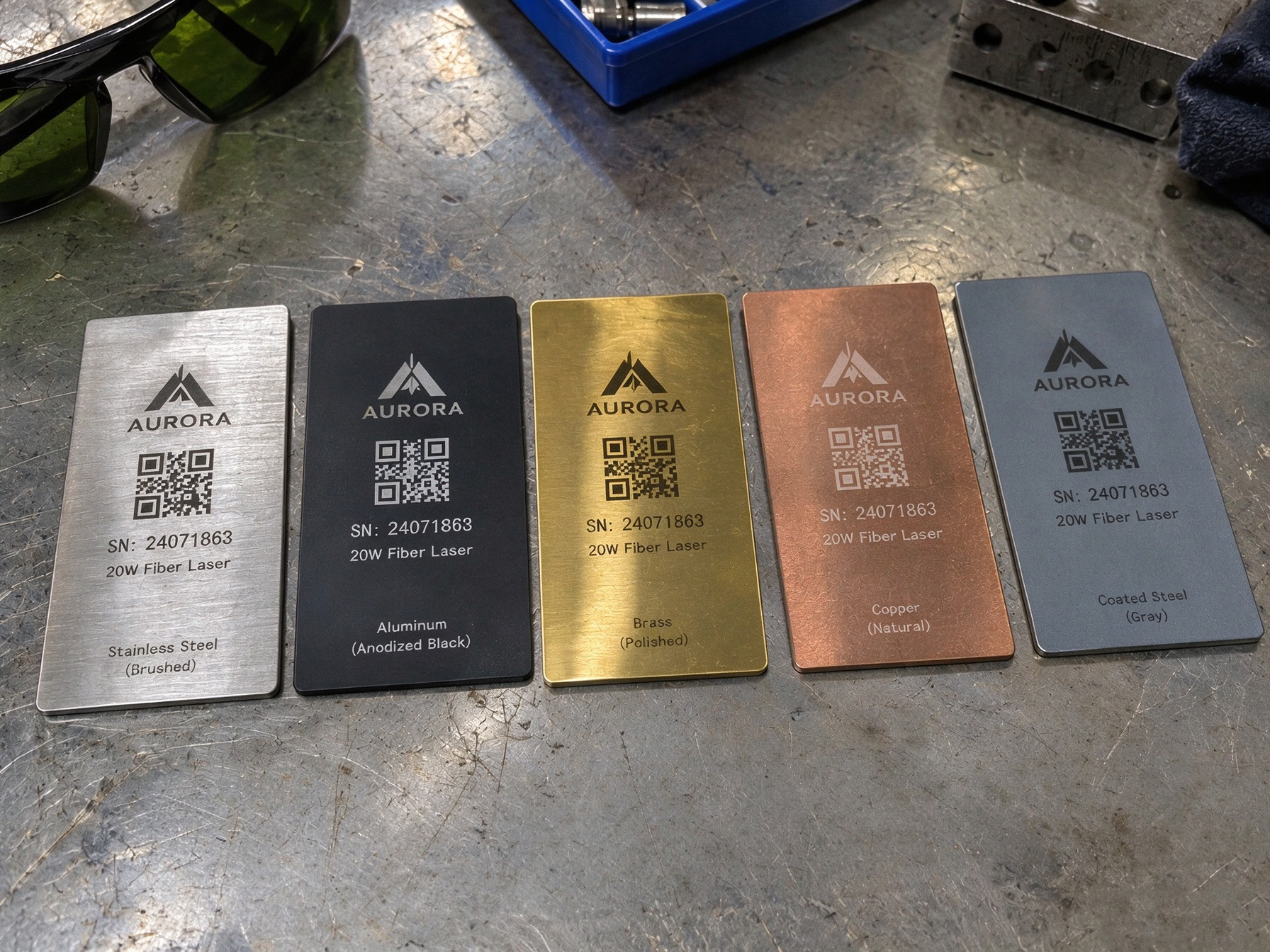

4. Which Metals Can a 20W Fiber Laser Mark?

A 20W metal engraver handles most common metals:

• Stainless steel

• Carbon steel

• Aluminum

• Anodized aluminum

• Brass

• Copper (slower)

• Titanium

• Chrome plating

• Nickel plating

• Some coated metals

It struggles with highly reflective bare copper and very hard alloys. For those, higher power or a different wavelength helps.

5. Real-World Applications for 20W Power

Industries using 20W fiber laser marking machine systems daily:

• Electronics: Serial numbers on connectors, PCB markings

• Tools and hardware: Brand logos, size markings on wrenches and sockets

• Medical devices: UDI codes on surgical instruments

• Automotive: Part numbers on brackets and fittings

• Jewelry: Hallmarks and personalization on rings and pendants

• Nameplates: Stainless steel tags for equipment

If your parts fit in a 110mm field and you're marking, not cutting, 20W gets the job done.

6. 20W Marker Price: $900–$1,600 and What Affects It

A 20W laser marking machine for metal typically runs $900 to $1,600. What moves the price?

• Laser source brand: Raycus, JPT, IPG (IPG costs more)

• Galvo scanner quality: Faster scanners cost more

• Software: Basic vs. advanced with rotary support

• Enclosure: Open frame vs. enclosed Class 1

• Warranty and support: Longer warranty adds cost

• Accessories: Rotary axis, foot pedal, extra lenses

Cheap isn't always better. A $900 machine with a no-name laser source may fail in months. A $1,600 unit with a reputable source and proper support is worth the extra.

7. ZGLC Laser Shipping Process: From Assembly to Final QC

Every 20W fiber laser marking machine goes through four stages before shipping:

1. Machine assembly – Components installed and wired

2. Laser testing – Power output and beam quality verified

3. Application testing – Test marks on your sample material (if provided)

4. Final QC – Full function check, safety verification, and packaging

We also send you photos and videos of your machine running before it leaves the factory.

8. 20W Fiber Laser Quality Control: What to Check

When evaluating any laser marking machine for metal, these checkpoints matter:

• Incoming inspection: Laser source, galvo head, power supply verified

• Machine structure: Frame rigidity, cable routing, connector quality

• Laser test: Power output, beam profile, focus consistency

• Software test: File import, parameter control, axis movement

• Marking validation: Test marks on stainless, aluminum, and brass

• Safety check: Emergency stop, key switch, interlock function

• Final traceability: Serial number recorded, test report filed

Ask your supplier for these reports. A serious manufacturer will have them.

9. Questions to Ask Before Buying a 20W Fiber Laser

• What laser source brand is used?

• What's the galvo scanner speed?

• Is the software EZCAD or proprietary?

• What's the warranty period and what does it cover?

• Can you provide test marking videos on my material?

• What's the lead time and shipping method?

• Do you offer spare parts and technical support?

• Is there a rotary axis option for rings and cylinders?

10. FAQ

Q: Can a 20W fiber laser mark stainless steel deeply?

A: It can mark stainless steel with high contrast through annealing, but it's not designed for deep engraving. For deep marks, choose 30W or 50W.

Q: How fast can a 20W fiber laser mark?

A: Up to 7,000 mm/s for light marking. Complex logos or deep marks run slower.

Q: Will a 20W laser mark aluminum?

A: Yes, but aluminum requires slower speeds and higher power settings for good contrast.

Q: Can I mark curved surfaces with a 20W fiber laser?

A: Yes, with a rotary axis attachment. It's optional but recommended for rings, tubes, and cylinders.

Q: Is a 20W fiber laser good for a small business?

A: Absolutely. It's the sweet spot for small shops doing serial numbers, logos, and QR codes on metal parts.

Q: What's the lifespan of a 20W fiber laser source?

A: Typically 100,000 hours. That's over 10 years of daily use.

Q: Does the 20W laser come with training?

A: ZGLC Laser provides operation manuals, video tutorials, and remote support. On-site training is available on request.

Ready to see a 20W fiber laser marking machine in action on your parts? Contact ZGLC Laser for a free sample marking test.
