How to Properly Set Up Barriers and Curtains in a Laser Controlled Area

Laser safety curtains look simple enough. Hang them up, block the beam, job done—right? Wrong. Walk into any laser workshop and you'll see curtains installed incorrectly: gaps at the corners, no overlap between panels, barriers that don't actually cover the beam path. The market is full of laser protection curtains, but making the right—and safe—choice isn't as straightforward as it seems. This guide walks you through everything you need to know about setting up laser safety barriers and curtains correctly.

1. What Is a Laser Controlled Area?

A laser controlled area (LCA) is a designated space where laser radiation hazards exist and where access is controlled. Laser safety regulations require that Class 3B and Class 4 laser systems be operated within a controlled area. Walls, partitions, and curtains within the LCA must be constructed from laser-safe materials capable of withstanding direct and reflected beams at the operating wavelength and power. The controlled area must be posted with warning signs at all entrances, and barriers must be in place to prevent laser light from exiting the area at levels above the applicable Maximum Permissible Exposure (MPE).

2. First, Conduct a Laser Hazard Analysis

Before you buy or install a single laser safety barrier, you need to understand exactly what you're dealing with. A proper laser hazard analysis answers three critical questions:

• What is the laser's wavelength and power? Different materials block different wavelengths. A curtain rated for 1064nm (fiber laser) won't protect you from a 10.6μm CO₂ laser.

• What is the beam path? Map out the direct beam, all possible reflections, and scattered radiation.

• What is the Nominal Hazard Zone (NHZ)? This is the area where the laser radiation exceeds the MPE.

The irradiance of the curtain should be below the damage threshold limit for the barrier at the installation distance. In the absence of specific laser specifications, the best option is to install a curtain with high irradiance specifications. Laser safety products should always be selected based on a complete hazard evaluation, and final selection should be reviewed by a qualified Laser Safety Officer (LSO).

3. Class 3B and Class 4 Lasers Require Different Thinking

Not all lasers need the same level of containment. Laser safety curtains are required for all open-beam Class 3B and Class 4 lasers. But the approach differs:

• Class 3B lasers (5–500mW) can cause eye damage from direct beam exposure. Curtains primarily need to block direct and specular reflections.

• Class 4 lasers (over 500mW) are also skin and fire hazards. Curtain materials must be flame-resistant and pass NFPA Standard 701 requirements.

Class 4 laser control areas must incorporate all Class 3B control measures plus blocking barriers that ensure MPE is not exceeded at entry points. Curtains used as part of an NHZ boundary for Class 3B or 4 lasers must reduce transmitted laser radiation to levels below the applicable MPE.

4. Start with Beam Enclosures and Beam Stops First

Here's a principle many overlook: laser safety barriers are your last line of defense, not your first. Before you even think about curtains, implement these basic controls:

• Beam tubes and enclosures – Fully enclose the beam path wherever possible

• Beam blocks and dumps – Terminate the beam at the end of its useful path

• Interlocks and shutters – Automatically block the beam when access is detected

Only after you've done everything possible to contain the beam at the source should you rely on perimeter barriers. Good laser safety practice is layered: engineering controls first, administrative controls second, PPE third.

5. Choose Tested and Labeled Laser Safety Curtains

This is non-negotiable. Never buy a laser safety barrier that hasn't been properly tested and labeled. Here's what to demand from your barrier supplier:

• Test reports showing the curtain's irradiance rating (e.g., 575 W/cm², 625 W/cm², or higher)

• Wavelength-specific protection data – the curtain must be rated for your specific laser wavelength

• Optical Density (OD) rating – inscribed on the product

• Flame resistance certification – NFPA 701 compliance is standard

• EN 12254 or ANSI Z136 compliance – depending on your region

Laser safety barriers and curtains are often mistakenly treated as though they are intended to serve as a target for a continuous direct beam exposure. In reality, they're typically used to contain reflected, scattered, or diffused radiation. Never subject laser curtains to direct laser beam exposure – direct exposure may damage them. These are not protective equipment that completely absorbs laser light.

6. Choose the Right Barrier Configuration

There are three main configurations for laser safety containment:

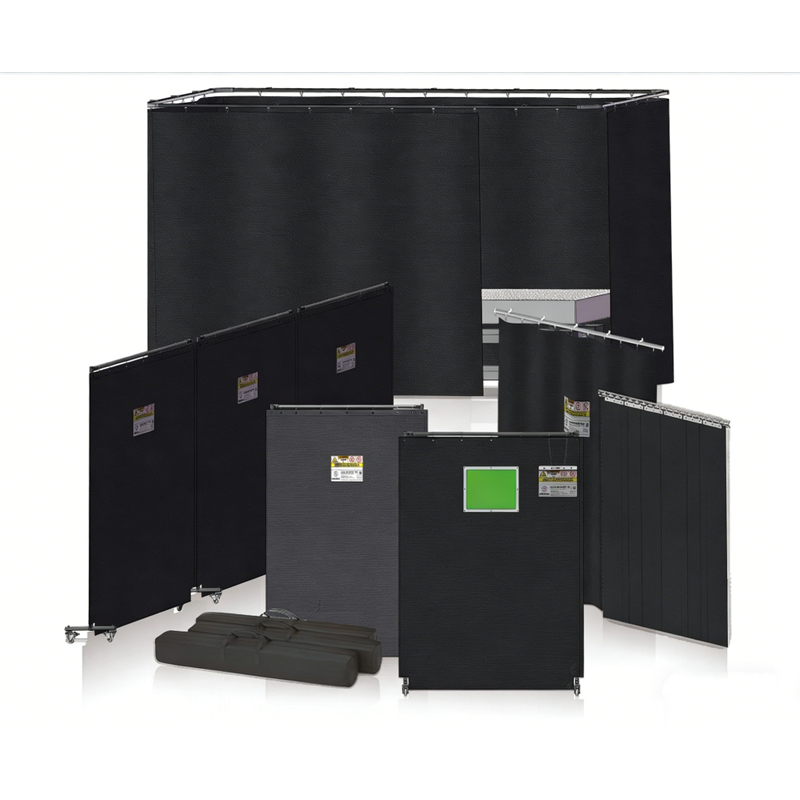

Flexible Laser Protection Curtains
Mounted to walls, ceiling tracks, or freestanding posts. Best for flexible containment, large openings, and areas where access needs to remain adaptable. Often include overlapping sections or access openings.

Portable Laser Safety Screens
Freestanding or wheeled barrier panels. Best for temporary work areas, mobile laser setups, research spaces, and flexible production environments. Easy to move and reposition, quick to deploy, no permanent installation required.

Full Enclosure Laser Safety Rooms
Complete enclosures that surround the entire work area. Best for permanent installations, higher-power systems, and applications requiring greater containment confidence. Rigid panel systems provide more defined and durable containment.

7. How to Position Laser Safety Curtains

Proper positioning is critical:

Map the complete beam path – Draw out the direct beam and all possible reflection paths. Place barriers where the beam could potentially exit the controlled area.

Set barriers beyond the foreseeable hazard zone – Don't place curtains right next to the beam. Give yourself a safety margin.

Cover windows, doors, and open passages – These are common escape routes for stray beams. Use window coverings or curtained entryways.

Curtained entryway enclosures should be composed of fabric sufficiently fire-resistant to prevent combustion when hit by the enclosed laser beam, arranged such that when closed, it fully protects the doorway from stray beams.

8. Eliminate Gaps at Seams, Corners, and Entryways

This is where most installations fail. Curtains must be hung carefully with enough overlap between them to avoid gaps opening. One source recommends an overlap of approximately 12 inches of the two vertical curtain pieces to provide access while maintaining protection.

For ceiling-mounted systems, valances provide partial blackout and cover gaps near the ceiling. When mounting track supports, install them every 1 meter for ceiling supports and every 1.2 meters for floor supports. The curtain need not be floor-to-ceiling—it can start a foot or so above the floor and stop several feet short of the ceiling. However, be aware that floor-to-ceiling curtains can interfere with air circulation and fire sprinkler function.

9. Ensure Mobile Barriers Are Secure

Portable laser safety barriers must be stable. Freestanding screens can be knocked over. Use:

• Locking casters on wheeled units

• Floor mounting adapters for stability

• Sufficient weight at the base to prevent tipping

• Interlocking panels that connect securely

10. Coordinate Installation with the Fire Department

This step is often skipped but can save lives. Laser safety curtains can affect:

• Fire sprinkler coverage – Curtains that extend to the ceiling can block sprinkler spray

• Emergency egress – All area or entryway controls must allow rapid egress under emergency conditions

• Fire alarm visibility – Curtains shouldn't obscure alarm pull stations or exit signs

Work with your local fire prevention authority to ensure your laser safety setup meets fire codes. Some facilities have been required to replace certain curtain materials based on fire safety recommendations.

11. Keep Rapid Emergency Exits Clear

This is critical and often overlooked. Laser safety barriers and curtains must never block emergency exits. All area or entryway safety controls must be designed to allow rapid egress by laser personnel and admittance to the laser controlled area under emergency conditions.

• Emergency "Beam Off" buttons should be located within the curtained entryway and at easily accessible points within the laboratory

• Interlocked doors with manual reset capability allow trained individuals to temporarily bypass interlocks when entering or exiting

• Curtains should part easily in an emergency—consider magnetic or Velcro closures rather than locks

12. Control Reflections Inside the Curtain

Laser beams can reflect off shiny surfaces inside the controlled area. Before installing laser safety curtains:

• Cover or remove reflective objects – tools, equipment, jewelry

• Use matte finishes on walls and work surfaces where possible

• Reduce smoothness of reflective objects or apply frosted material

13. Commission Barriers Before Routine Operation

Before you start regular production:

1. Commission the full system – Run test firings with all barriers in place

2. Verify no beam escape – Use beam cards or detectors at all potential exit points

3. Document the setup – Take photos, record barrier positions, note parameters

4. Train all operators on the specific barrier configuration

14. Inspect Laser Safety Barriers Before Each Use

Create a pre-operation checklist:

• Are all laser safety curtains properly closed with no gaps?

• Are the curtains free from damage or burn marks?

• Are warning signs posted and visible at all LCA entry points?

• Are beam stops and barriers in position?

• Is the area free of unauthorized personnel?

15. Recheck the Setup After Every Laser Change

Laser parameters change. When you replace a laser source, change wavelengths, or adjust power:

• Re-evaluate the hazard analysis

• Re-test barrier effectiveness for the new parameters

• Update documentation and operator training

16. Common Laser Curtain Installation Mistakes

1. No overlap between panels – leaving gaps that beams can escape through

2. Using curtains as beam targets – direct exposure damages the material

3. Blocking fire sprinklers – floor-to-ceiling curtains can prevent sprinklers from reaching a fire

4. Ignoring reflections – shiny surfaces inside the controlled area create secondary hazards

5. No emergency egress plan – barriers that trap people inside

6. Buying untested curtains – no test reports, no wavelength rating

7. Inadequate support spacing – curtains that sag or fall

17. FAQ

Q: Can I use any curtain as a laser safety curtain?

A: No. Only curtains specifically tested and labeled for laser protection should be used. They must be rated for your laser's wavelength and power. Never subject laser curtains to direct beam exposure.

Q: Do laser safety curtains need to be floor-to-ceiling?

A: Not necessarily. They can start about a foot above the floor and stop short of the ceiling. However, floor-to-ceiling curtains can interfere with fire sprinklers.

Q: What overlap do I need between curtain panels?

A: At least 12 inches of overlap between vertical panels is recommended to prevent gaps. For ceiling-mounted systems, use valances to cover gaps near the ceiling.

Q: How often should I replace laser safety curtains?

A: Replace curtains periodically because the optical density may deteriorate depending on usage, storage environment, direct sunlight, high temperature, high humidity, or scratches.

Q: Can laser safety curtains block a direct beam?

A: No. These curtains are designed to contain reflected, scattered, or diffused radiation, not to serve as targets for direct beams. Direct exposure may damage them.

Q: Who should review my barrier setup?

A: Final containment selection should always be reviewed by a qualified Laser Safety Officer (LSO) or laser safety professional.
